>> B << Spider Assembly/ETJ Case Installation

CAUTION:
  • The driveshaft joint use special grease. Do not mix old and new or different types of grease.
  • If the spider assembly has been cleaned, take special care to apply the specified grease.
  1. Apply the specified grease furnished in the repair kit to the spider assembly between the spider axle and the roller.

    Specified grease: Repair kit grease

  2. Install the spider assembly to the shaft from the direction of the spline chamfered side.

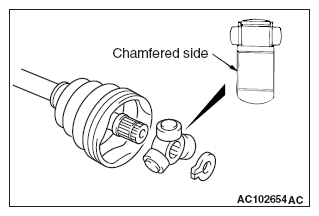

    Fig 1: Spider Assembly Chamfered Side
    G09650545Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. After applying the specified grease to the ETJ case, insert the driveshaft and apply grease one more time.

    Specified grease: Repair kit grease

    Amount to use: 120 ± 10 g (4.2 ± 0.3 ounce)

    NOTE: When using the repair kit grease, fill the half of the grease into the joint and the other half into the boot as a guideline, and consume the grease completely.

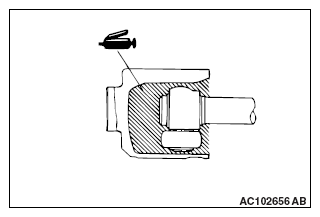

    Fig 2: Grease Applying Area On ETJ Case
    G09650546Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
