>> A << Knuckle And Strut Assembly Connection Bolt Installation

Locate the knuckle and strut assembly upper connection bolt's marking position as shown in the illustration and tighten it.

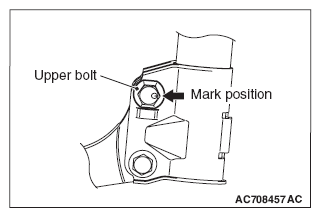

Fig 1: Upper Bolt Position Mark
G09650496Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
