<< E >> Front Hub Assembly And Front Driveshaft Assembly Disconnection

CAUTION:

The magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder does not collect metallic particles.
When removing the front driveshaft, make sure that it does not contact with the magnetic encoder (integrated with the inner oil seal) to avoid damage.

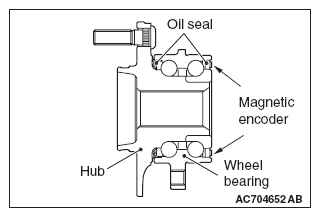

Fig 1: Locating Magnetic Encoder

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If the front driveshaft and front hub are seized, use special tools MB990242 and MB990244, MB991354 and MB990767 to push the front driveshaft assembly out from the front hub.

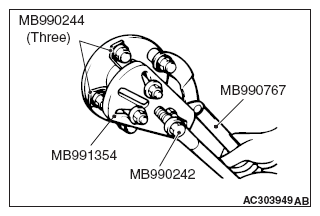

Fig 2: Removing Front Driveshaft Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
