Key Supply Unit List For Other Than Individual Key

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

KEY SUPPLY UNIT LIST FOR OTHER THAN INDIVIDUAL KEY

Full service key set	Handle lock service key set
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

KEY SUPPLY UNIT LIST FOR OTHER THAN INDIVIDUAL KEY

Door service key set	NOTE: Key (It is the key that comes with the door service key set. It can only be used for locking and unlocking, and it cannot start the engine.)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: When re-registering the key (key ID and keyless ID), all the keys (key ID and keyless ID) registered before must be re-registered because all of them will be erased. If the registration fails, repeat from the start. After registering the keys, make sure that the engine is started normally with all of the keys registered.

Screen flow of scan tool MB991958(M.U.T.-III sub assembly)

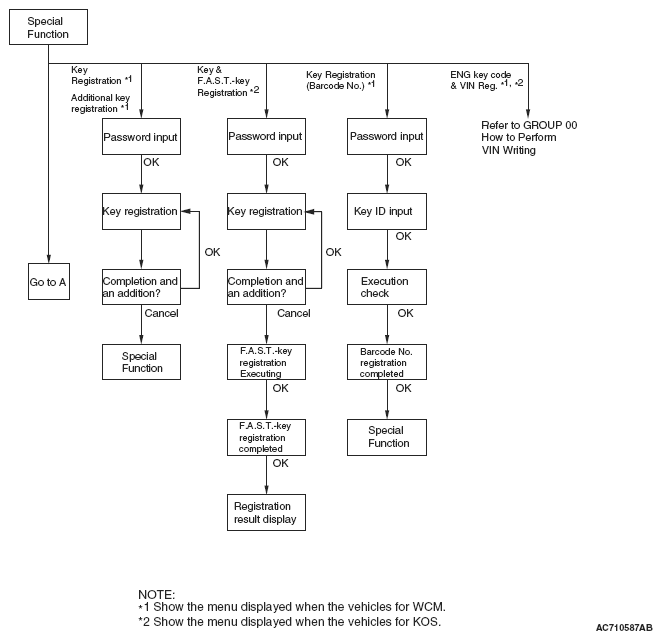

Fig 1: Screen Flow Of Scan Tool MB991958 (M.U.T.-III Sub Assembly) (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

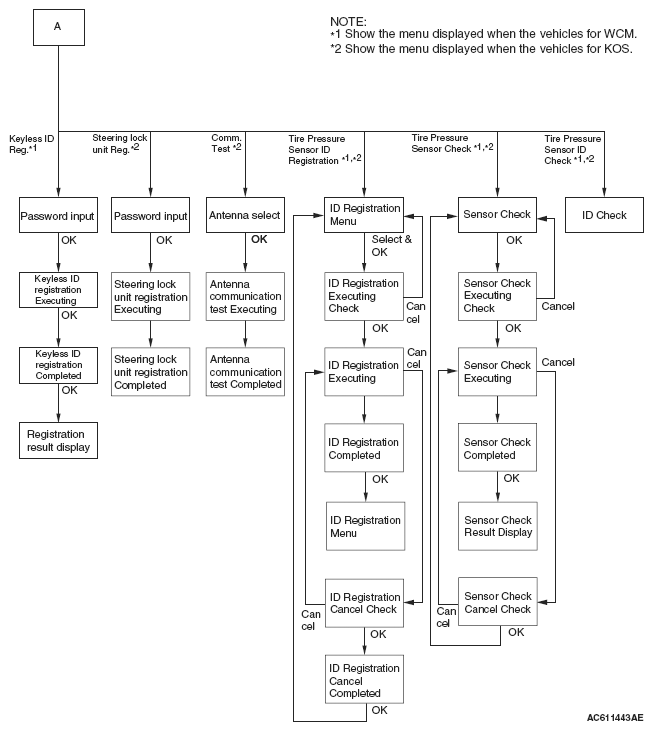

Fig 2: Screen Flow Of Scan Tool MB991958 (M.U.T.-III Sub Assembly) (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

Connect the scan tool to the 16-pin data link connector as follows.

NOTE: For details on how to use the scan tool, refer to the " ".

Start the scan tool MB991958 system on the personal computer and turn the ignition switch to the "ON" position.

Fig 3: Connecting Special Tool MB991910 To Data Link Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Select "F.A.S.T./IMMO/Keyless/TPMS" button from the "System Select" screen. Then, select the applicable option code item and push the OK button.

Fig 4: Scan Tool Display - F.A.S.T./IMMO/Keyless/TPMS

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Select "Special Function" on the next screen.
Select the button of the operation to be performed from the "Special Function" screen.
- "Key Registration": When the ignition key is replaced or added as a single unit and/or the WCM replaced.
- "Additional key registration": When the ignition key is added as a single unit.
- "Key Registration (Barcode No.)": When the ignition key is replaced by the full service key set, the handle lock service key set, immobi and keyless key assembly or immobilizer key assembly is replaced by the piece.

  Fig 5: Scan Tool Display - Special Function
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- "Keyless ID Reg.": When the ignition key is replaced or added as a single unit and the immobi and keyless key assembly.
- "Tire Pressure Sensor ID Registration": When the TPMS transmitter is replaced and/or the WCM is replaced.
- "Tire Pressure Sensor Check": When the tire pressure sensor data is checked.
- "Tire Pressure Sensor ID Check": When the tire pressure sensor ID is checked.
  NOTE: For "ENG Key Code & VIN Reg," refer to PRECAUTIONS BEFORE SERVICE .
After operation check, turn the ignition switch to the "LOCK" (OFF) position.
Remove the scan tool MB991958.
