<< B >> Battery Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.
To prevent damage to the transmitter assembly, wrap a flat-tipped screwdriver with protective tape before prying.

Fig 1: Removing Transmitter Upper Cover

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Insert a flat-tipped screwdriver in the area shown in illustration, and remove the battery by prying it with the screwdriver.

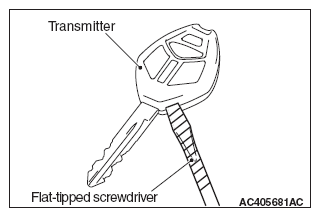

Fig 2: Inserting Flat-Tipped Screwdriver In Transmitter

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
