<< C >> Driver's Air Bag Module Connector Removal

Slide the outer housing of the driver's air bag module connector in the arrow direction shown and disconnect the connector.

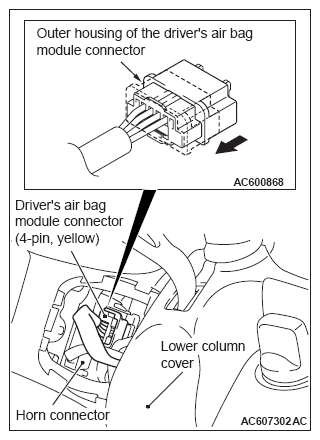

Fig 1: Removing Driver's Air Bag Module Connector
G09652289Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
