DTC B1B8D: Driver Seat Slide Sensor Open Circuit: Notes

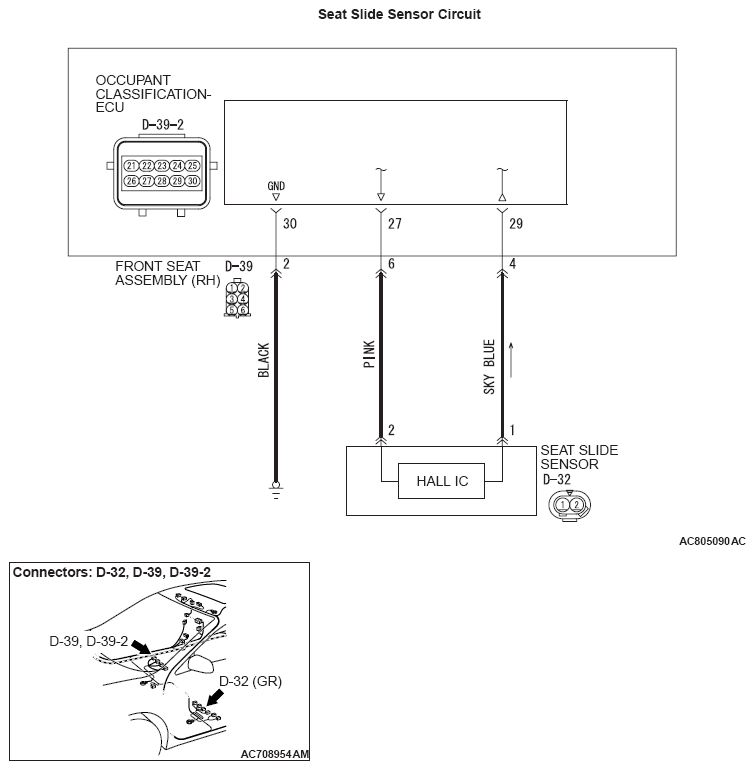

Fig 1: Seat Slide Sensor Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1B8D is set in the occupant classification-ECU, always diagnose the CAN main bus lines.
