Removal And Installation: Notes

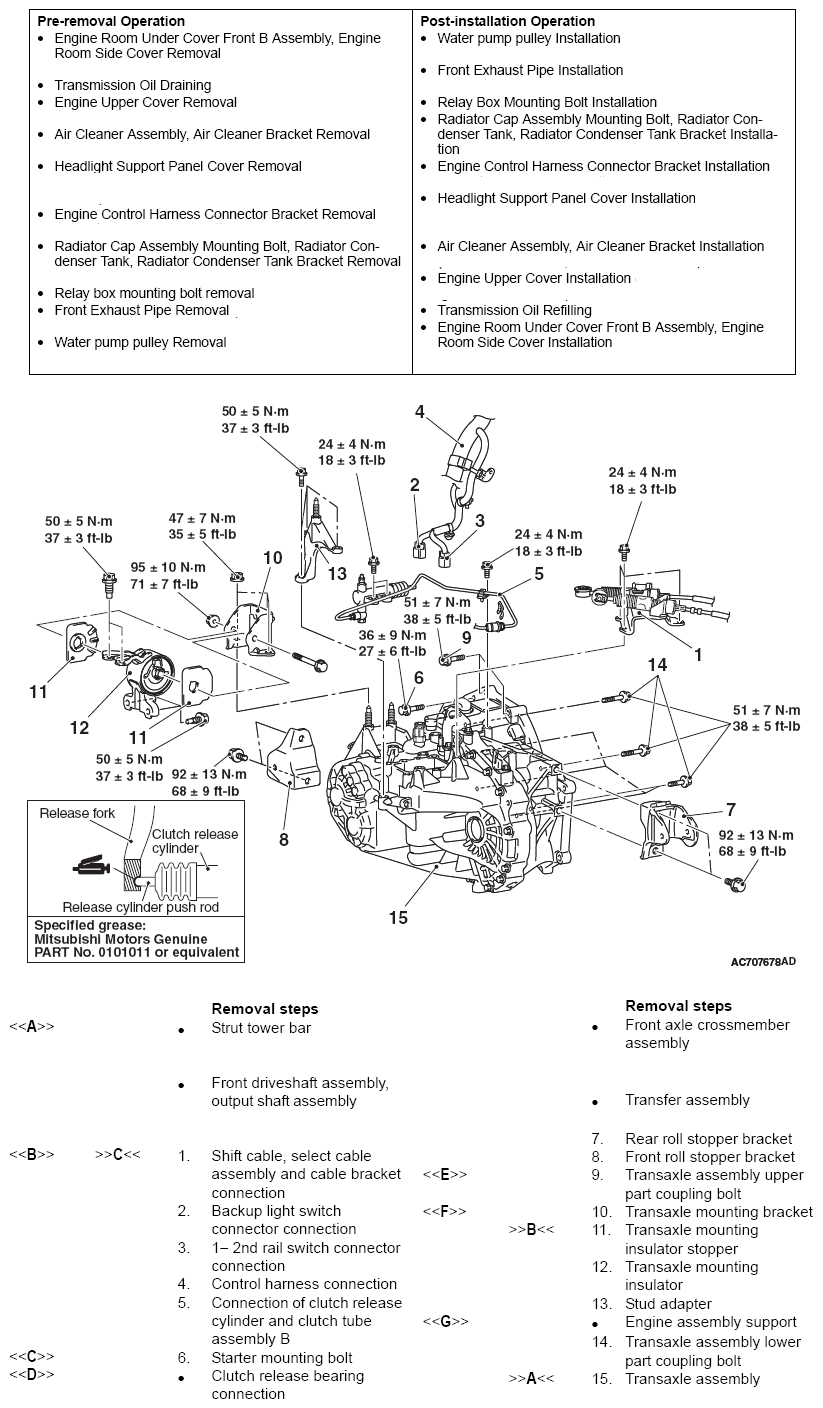

Fig 1: Removing/Installing Transaxle Assembly With Torque Specifications
G09641179Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
