Removal And Installation: Notes

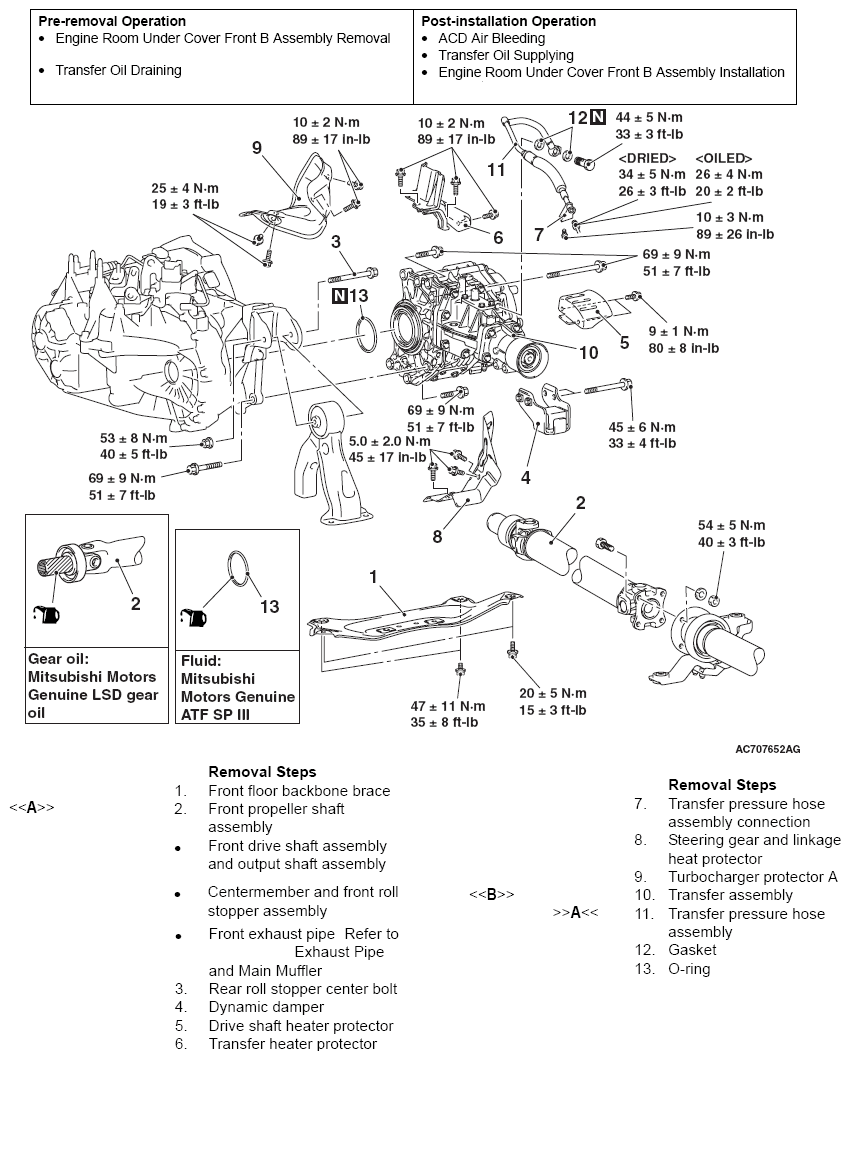

Fig 1: Removing/Installing Transfer Assembly With Torque Specifications
G09641177Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
