Disassembly And Assembly: Notes

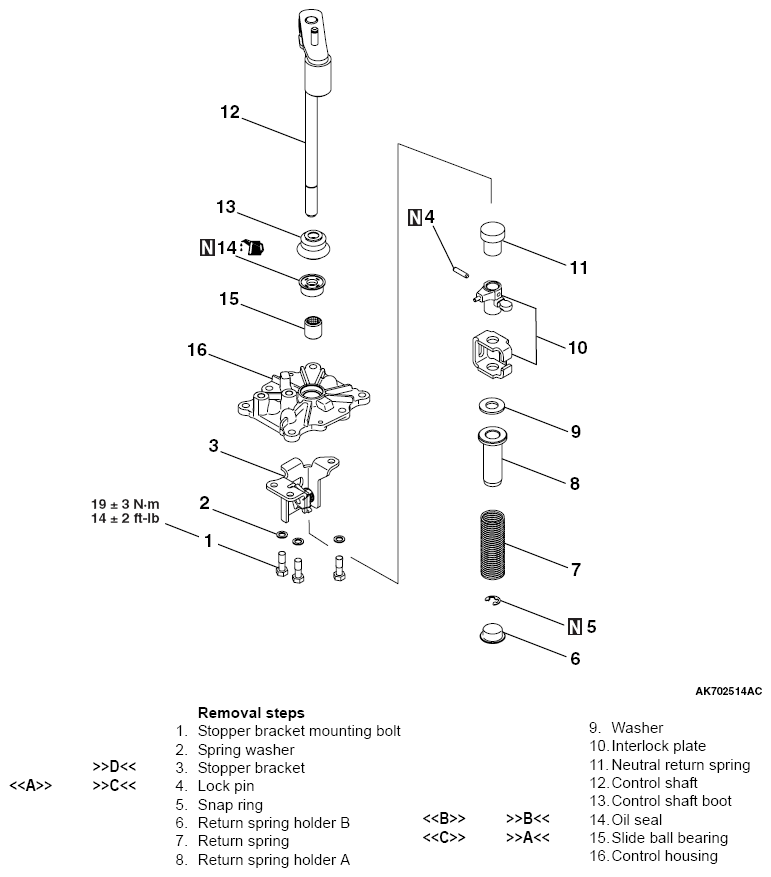

Fig 1: Disassembling/Assembling Control Housing With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD999566: Claw
• MB990947: Lower arm bushing arbor
• MB990984: Mount bushing remover and installer arbor
• MB991246: Lower arm bushing arbor
