>> C << 1ST-2ND Speed Synchronizer Hub Installation

  1. Install the 1st-2nd speed synchronizer hub in the illustrated direction.

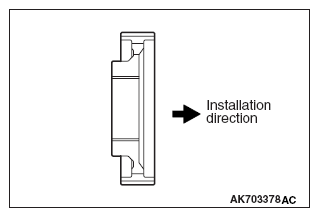

    Fig 1: Installing 1st-2nd Speed Synchronizer Hub
    G09641278Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Using the special tools, MD998812, MD998814 and MD998824, indicated below, install the 1st-2nd speed synchronizer hub.

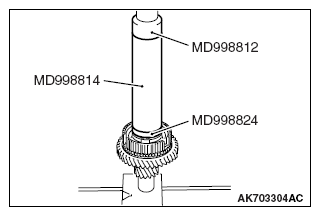

    Fig 2: Installing 1st-2nd Speed Synchronizer Hub Using Special Tools MD998812, MD998814 And MD998824
    G09641279Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
