Disassembly And Assembly: Notes

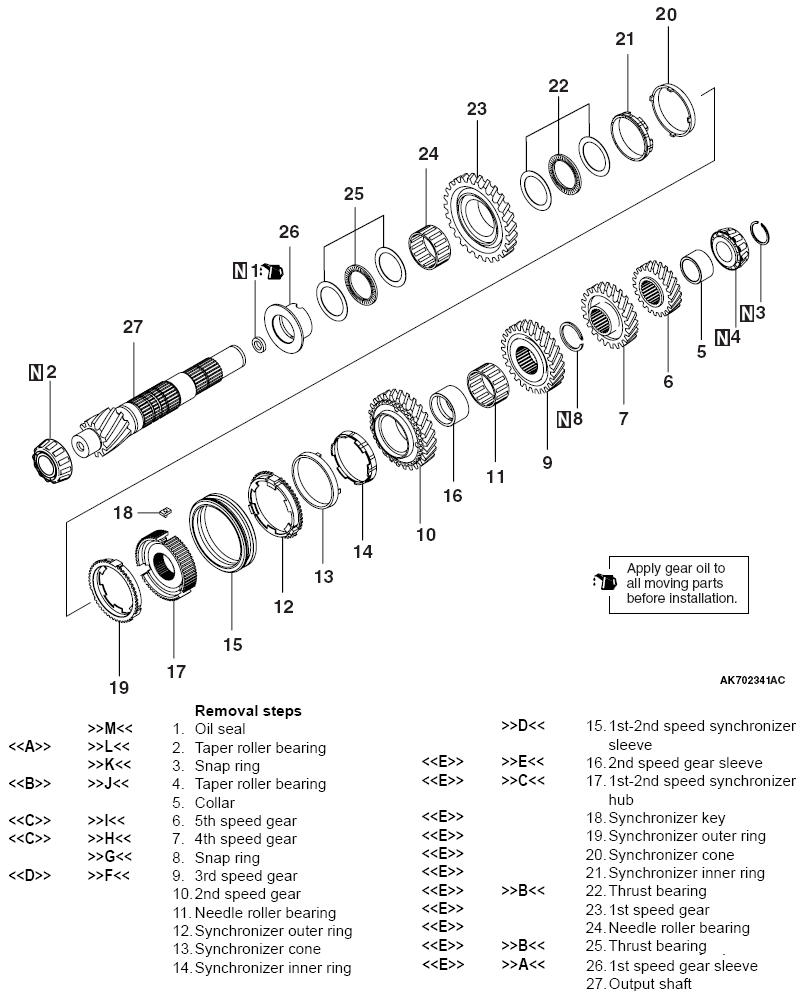

Fig 1: Disassembling/Assembling Output Shaft With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990560: Rear axle shaft bearing remover
• MB990842: Drag link bushing remover and installer B
• MD998917: Bearing remover
• MD998812: Installer cap
• MD998814: Installer-200
• MD998824: Installer adapter (50)
• MD998822: Installer adapter (46)
• MD998813: Installer-100
• MD998821: Installer adapter (44)
• MD998819: Installer adapter (40)
• MD999601: Valve stem seal installer
