Disassembly And Assembly: Notes

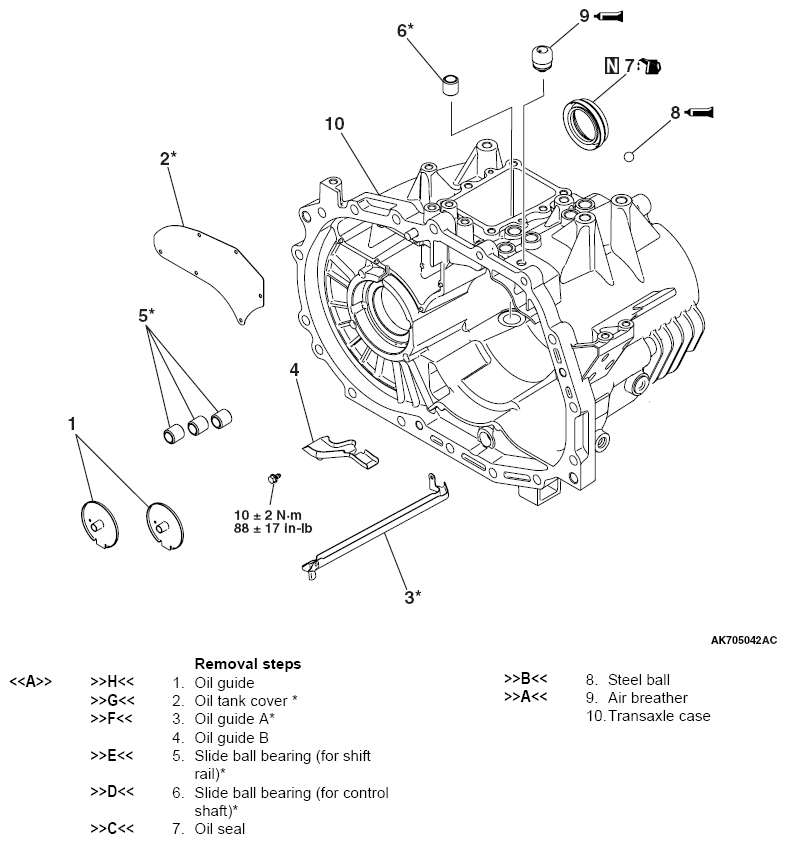

Fig 1: Disassembling/Assembling With Torque Specification
G09641320Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: *Refer to the assembly service points only when the transaxle case is replaced.

Required Special Tools:
