>> A << 3RD-4TH Speed Shift Fork/5TH Speed Shift Fork/Shift Lug/5TH Speed Shift Rail Assembly/Input Shaft Assembly/Output Shaft Assembly Removal

With the differential assembly raised a little, install the 3rd-4th speed shift fork, 5th speed shift fork, shift lug, 5th speed shift rail assembly, input shaft assembly and output shaft assembly as a set.

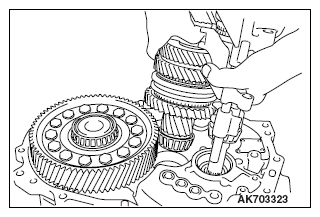

Fig 1: Installing 3rd-4th Speed Shift Fork And 5th Speed Shift Rail Assembly
G09641231Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
