>> D << Spring Pin Installation

Install the spring pin to the shift rail so that the slit of the spring pin aligns with the center axis of the rail as shown in the illustration.

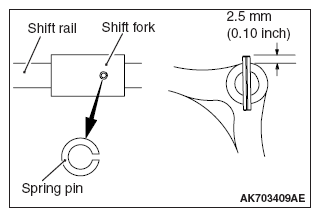

Fig 1: Identifying Spring Pin To Shift Rail
G09641234Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
