>> E << 5TH-Reverse Speed Shift Rail Installation

Install the 5th-reverse speed shift rail, with its identification groove to the clutch housing side.

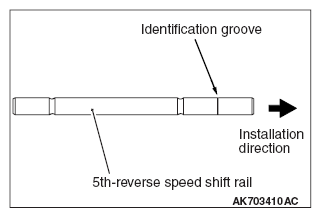

Fig 1: Installing 5th-Reverse Speed Shift Rail With Identification Groove To Clutch Housing Side
G09641235Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
