< Measurement using solder >

If soft solder is not available, select the spacer in accordance with Plastigage method.
If the spacer appropriate for the standard value cannot be selected using soft solder, select the spacer in accordance with Plastigage method.

Install the input shaft, output shaft and center differential as a set to the clutch housing.

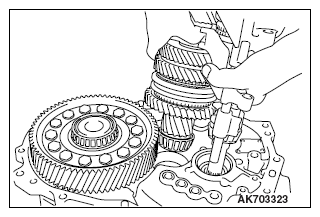

Fig 1: Identifying Input Shaft, Output Shaft And Center Differential On Clutch Housing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Put a piece of solder [1.6 mm (0.06 in) diameter, 10 mm (0.39 in) long] on the transaxle case at the positions shown in the illustration.
Install the bearing outer races on the pieces of solder.
Install the clutch housing to the transaxle case and tighten the bolts to the specified torque.
Remove the clutch housing, then remove the bearing outer races and take out crushed pieces of solder.

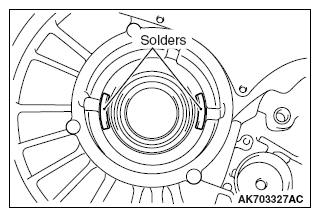

Fig 2: Identifying Solders On Clutch Housing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: If the pieces of solder have not crushed, use thicker solders and repeat steps 2 to 3.
Measure the thickness of crushed solder with a micrometer, select the spacers that provide the standard preload values and install them.
- Input shaft
  Input shaft preload

  Spacer thickness: [T + 0.10 mm (0.0039 inch)] - [T + 0.17 mm (0.0067 inch)]

  T: Thickness of crushed solder mm (inch)

  Standard value: 0.10 - 0.17 mm (0.0039 - 0.0067 inch)
- Output shaft
  Output shaft preload

  Spacer thickness: [T + 0.15 mm (0.0059 inch)] - [T + 0.21 mm (0.0083 inch)]

  T: Thickness of crushed solder mm (inch)

  Standard value: 0.15 - 0.21 mm (0.0059 - 0.0083 inch)

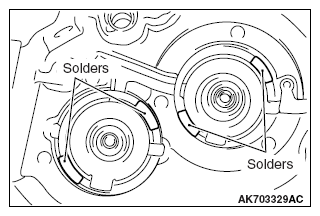

  Fig 3: Identifying Solders On Clutch Housing
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Center differential
  Center differential preload

  Spacer thickness: [T + 0.06 (0.0024 inch)] - [T + 0.12 mm (0.0047 inch)]

  T: Thickness of crushed solder mm (inch)

  Standard value: 0.06 - 0.12 mm (0.0024 - 0.0047 inch)
