Cruise Control Switch Check
- Remove the cruise control switch (Refer to CRUISE CONTROL SWITCH .)

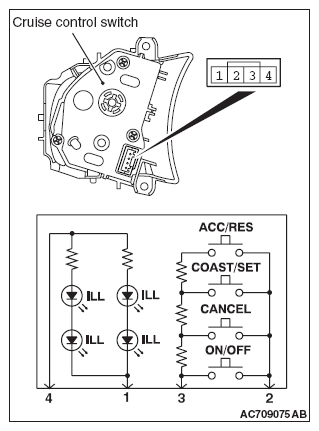

- Measure the resistance between terminal number 2 and terminal number 3 when each of the "ON/OFF", "CANCEL", "COAST/SET" and "ACC/RES" switches is pressed. If the values measured at the time each switch is pressed correspond to those in the table below, the resistance values are correct.
Terminal connector of tester Switch position Specified condition 2 - 3 All switches are released. Open circuit "ON/OFF" switch is pressed Continuity (less than 2 ohms) "CANCEL" switch is pressed 202.5 - 208 Ω "COAST/SET" switch is pressed 610.5 - 624.5 Ω "ACC/RES" switch is pressed 1838 - 1877 Ω - Check that the cruise control switch illuminates when a positive battery terminal is connected to the connector terminal number 4, and terminal number 1 is grounded.
