Hands Free Module

NOTE:
  • While the hands free module is in diagnosis mode, connection with the Bluetooth® device is shut down.
  • While the hands free module is in diagnosis mode, the sound input to the microphone unit is output directly through the speaker.
  1. Select "hands free module" on "Service" screen.

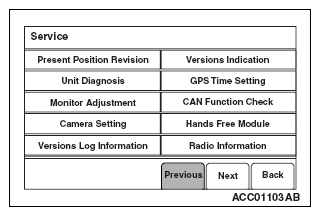

    Fig 1: Service Screen
    G09652871Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. "Hands Free Module" screen is displayed.

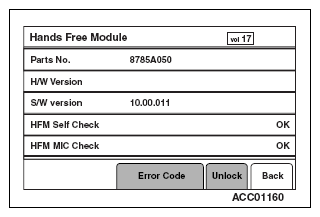

    Fig 2: Hands Free Module Diagnosis Result Screen
    G09652872Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    DISPLAY ITEM SPECIFICATION

    Displayed name Detail
    VOL The volume of the sound input to the microphone unit and output through the speaker while the hands free module is in diagnosis mode. (The sound volume can be changed by operating the multivision display.)
    Parts No The part number of the hands free module is displayed in 8 digits.
    H/W version The hardware version information of the hands free module is displayed in 2 digits.
    S/W version The software version information of the hands free module is displayed in 7 digits.
    HFM Self Check The hands free module state is displayed.
    • "OK": Normal (There is no abnormality in the hands free module.)
    • "NG": Abnormal (The hands free module may have a problem.)
      NOTE: If "NG" is displayed, turn the ignition switch to the "OFF" position once. Then, turn the ignition switch to the "ON" position, and enter into the diagnosis mode. When the HFM Self Check display is NG again, the hands free module is determined to be defective.
    HFM MIC Check Displays the communication condition of the hands free module and the microphone unit.
    • "OK": Normal (There is no short circuit or open circuit in the line between the microphone unit and the hands free module.)
    • "NG (Short)": This message is displayed when the line between the microphone unit and the hands free module is shorted.
    • "NG (Open)": (This message is displayed when there is an open circuit in the line between the microphone unit and the hands free module.)
    DISPLAY BUTTON AND FUNCTION DESCRIPTION

    Display button Detail
    S/W Update Execution button for software update of the hands free module (Displayed only when the update is possible.)
    Error Code Error Code screen is displayed. (This button is displayed in gray when "HFM Self Check" is "OK.")
    Unlock Forcibly unlocks the 4-digit pass code that was stored by the security function. (When the module is not locked by pass code, the "Unlock" button is displayed in gray.)
    Back Returns to "Service" screen.
