<< B >> Front Bracket Removal

CAUTION: Do not insert the screwdriver blades too deep. Doing so could damage the stator coil.

Insert the blades of screwdrivers between the front bracket and stator core, and pry and separate them with the screwdrivers.

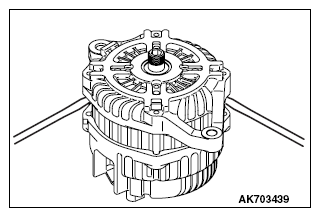

Fig 1: Prying Front Bracket And Stator Core
G09640992Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
