>> C << Pulley Installation

Clean the inner race of the front bearing and that of the pulley.
Screws the inner race of the pulley until it touches the inner race of the front bearing.

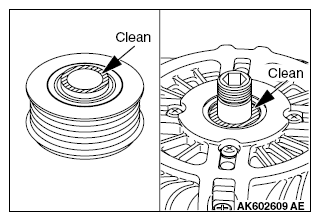

Fig 1: Identifying Front Bearing Inner Race Cleaning Area
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

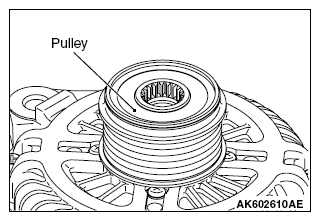

Fig 2: Identifying Pulley
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set the special tool MB992226 to the pulley.

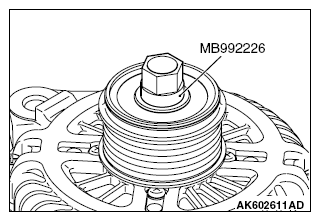

Fig 3: Setting Special Tool MB992226 To Pulley
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set the closed wrench to the hexagonal area of the special tool MB992226.

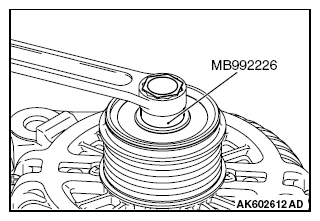

Fig 4: Setting Closed Wrench To Hexagonal Area Of Special Tool MB992226
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Insert the hexagonal bit socket having width across flats of 10 mm (0.4 inch) into the hexagonal area of the rotor shaft.
Hold the pulley with the closed wrench.
Rotate the hexagonal bit socket counterclockwise to tighten it to the specified torque.

Specified torque: 73 ± 12 N.m (54 ± 8 ft-lb)

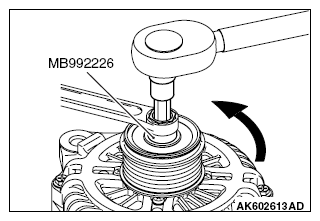

Fig 5: Holding Pulley Using Closed Wrench
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
