Removal And Installation: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When the knock sensor is replaced, initialize the learned value using scan tool (Refer to INITIALIZATION PROCEDURE ).

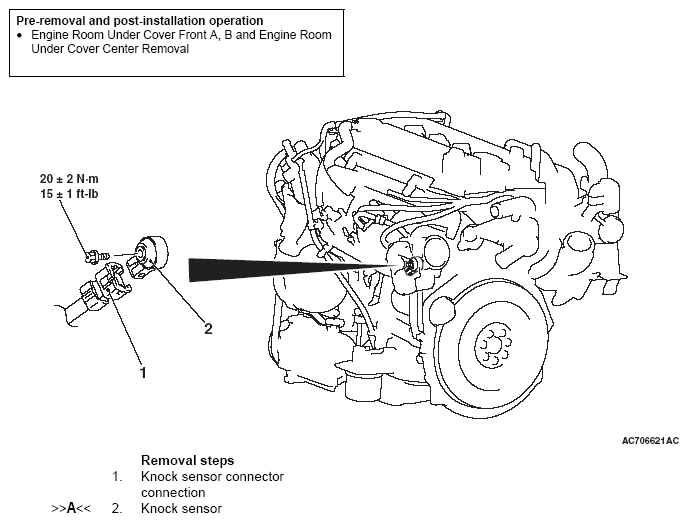

Fig 1: Knock Sensor Replacement Components With Torque Specifications
G05393761Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
