DTC U0169: Sunroof LIN timeout < Vehicles with sunroof >: Notes
WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before replacing the ECU, ensure that the communication circuit is normal.

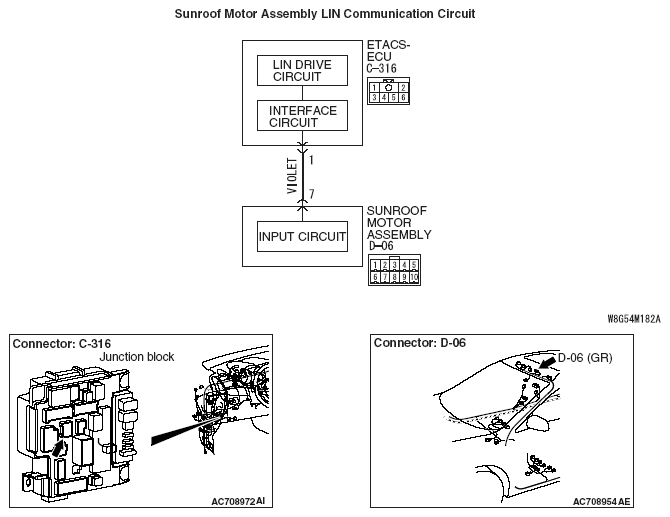

Fig 1: Sunroof Motor Assembly LIN Communication Circuit Diagram
