Hands Free Module: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

While the hands free module is in diagnosis mode, connection with the Bluetooth® device is shut down.
While the hands free module is in diagnosis mode, the sound input to the microphone unit is output directly through the speaker.

When you select "Hands Free Module" button on "Service" screen, the handsfree system will be diagnosed.

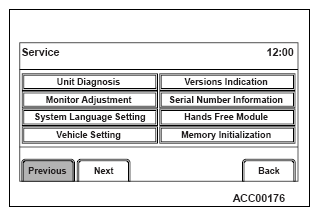

Fig 1: Display - Hands Free Module Service Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The diagnosis result will be displayed.

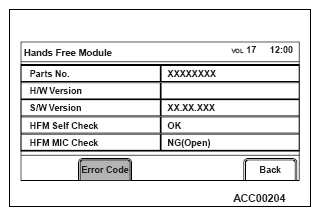

Fig 2: Display - Hands Free Module Service Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
