Error Code

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

The error code is displayed to show the internal state of the module.

NOTE: This code shows the internal state of the hands free module. Do not determine that the module is defective even when an error code is displayed. Be sure to diagnose the module before replacing it.

Press "Error Code."
NOTE: "Error Code" is displayed when the "HFM Self Check" is "NG."

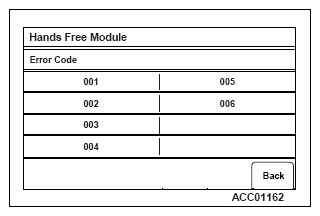

Fig 1: Display - Hands Free Module Error Code Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When "Back" is selected, the display returns to the "Hands Free Module" screen.

Fig 2: Display - Hands Free Module Back Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
