Hands Free Module: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

While the hands free module is in diagnosis mode, connection with the Bluetooth® device is shut down.
While the hands free module is in diagnosis mode, the sound input to the microphone unit is output directly through the speaker.

Select "hands free module" on "Service" screen.

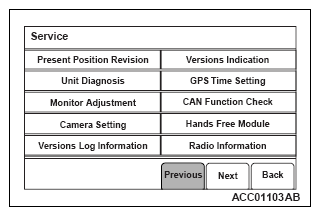

Fig 1: Display - Service Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
"Hands Free Module" screen is displayed.

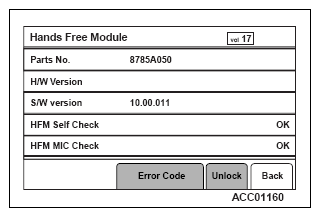

Fig 2: Display - Hands Free Module Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
