Special Tool

WARNING: This page is about a different variant/trim than selected.
Tool Tool number and name Supersession Application

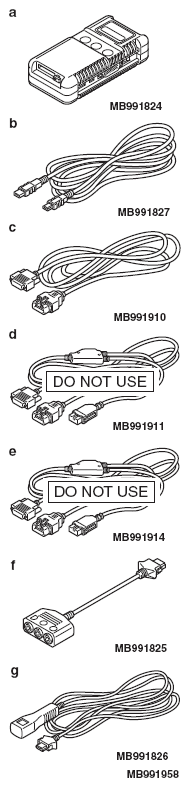

G09627927
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

M.U.T.-III sub assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Chrysler models only)
  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle.
ETACS-ECU check (Diagnostic trouble code, service data)

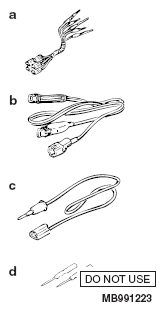

G09627928
 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set
  1. Test harness
  2. LED harness
  3. LED harness adaptor
  4. Probe
 General service tools Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
  1. Connector pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection
G09627929
 MB992006
Extra fine probe		 - Making voltage and resistance measurement during troubleshooting
G09627930
 MB990784
Ornament remover		 General service tool Steering column cover removal
