DTC B2101: IG SW start POS.circuit low; DTC B2102: IG SW start POS.circuit high: Notes

CAUTION:

• If DTC B2101 or B2102 is set, be sure to diagnose the CAN bus line.
• Before replacing the ECU, ensure that the communication circuit is normal.

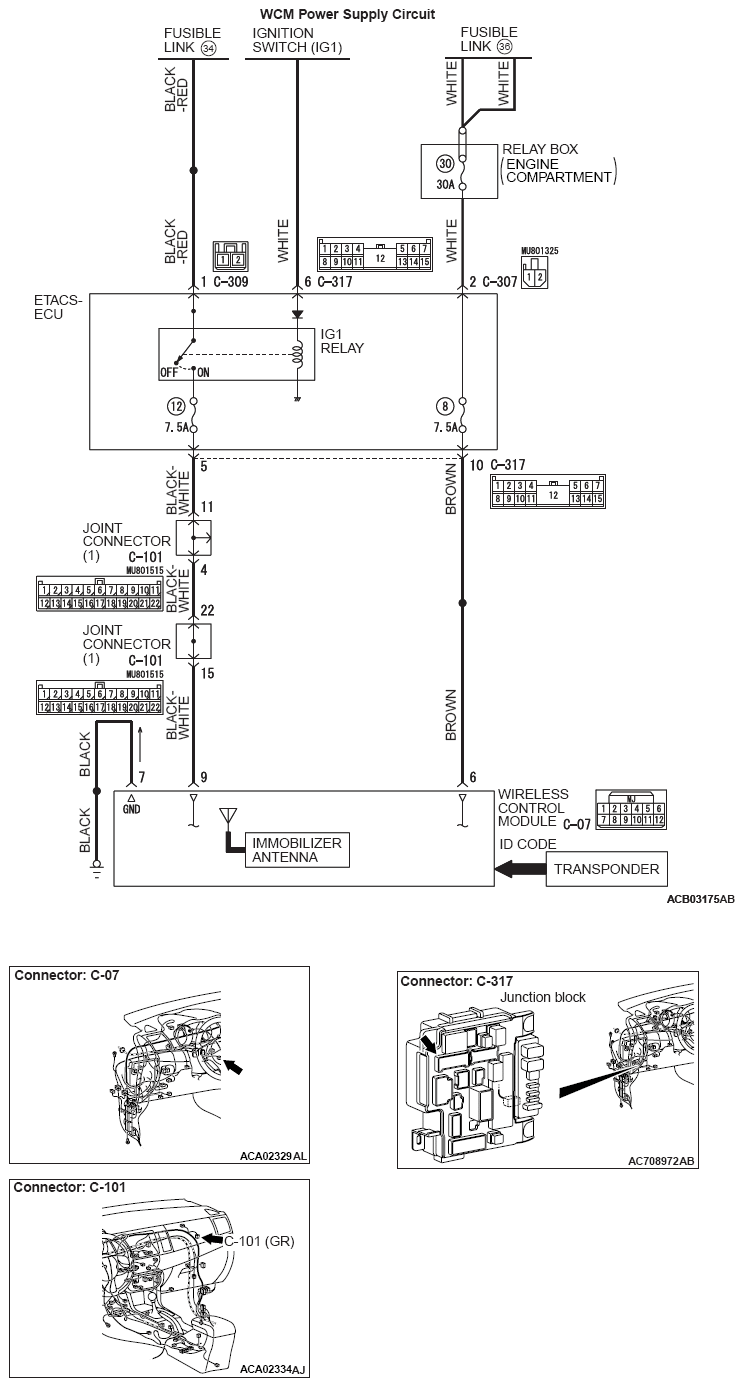

Fig 1: WCM Power Supply Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
