Removal And Installation: Notes

CAUTION: When WCM has been replaced, all key ID codes should be registered, referring to the ID code registration necessity judgment table (Refer to ID registration procedure manual - ID codes registration judgment table).

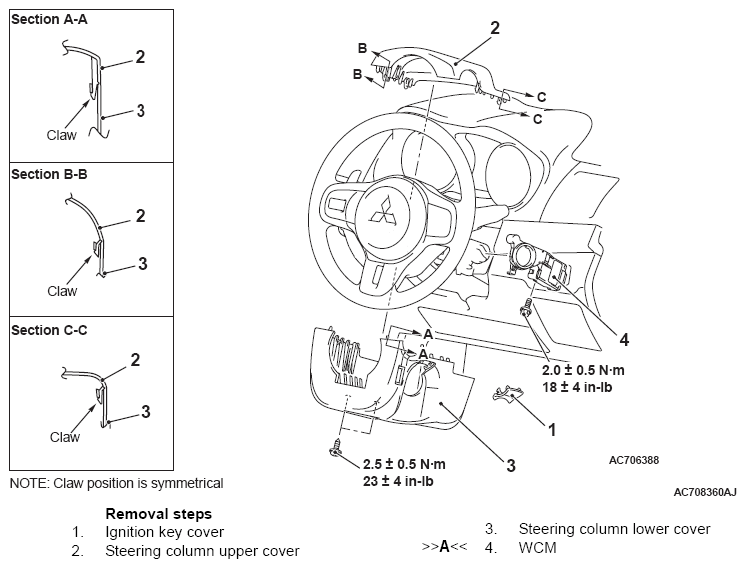

Fig 1: Removing/Installing WCM Components With Torque Specifications
G09651550Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
