Steering Wheel Voice-Control Switch Continuity Check: Notes
Use an ohmmeter to measure the resistance value between the terminal.
| Switch position |
Tester connection |
Measurement value |
| No push |
2 - 3 |
Approximately 74 kΩ |

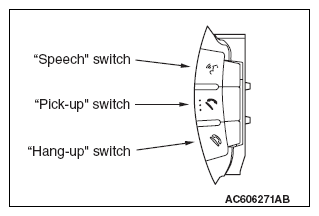

| "Speech" switch |
Approximately 1.5 kΩ |
| "Pick-up" switch |
Approximately 3.3 kΩ |
| "Hang-up" switch |
Approximately 6.0 kΩ |
