Dash Panel

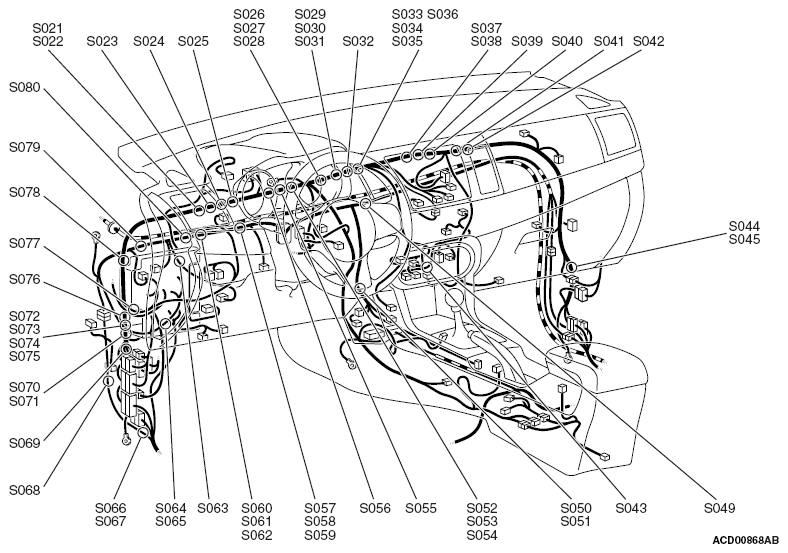

Fig 1: Dash Panel Splice Locations
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
