Disassembly And Assembly: Notes

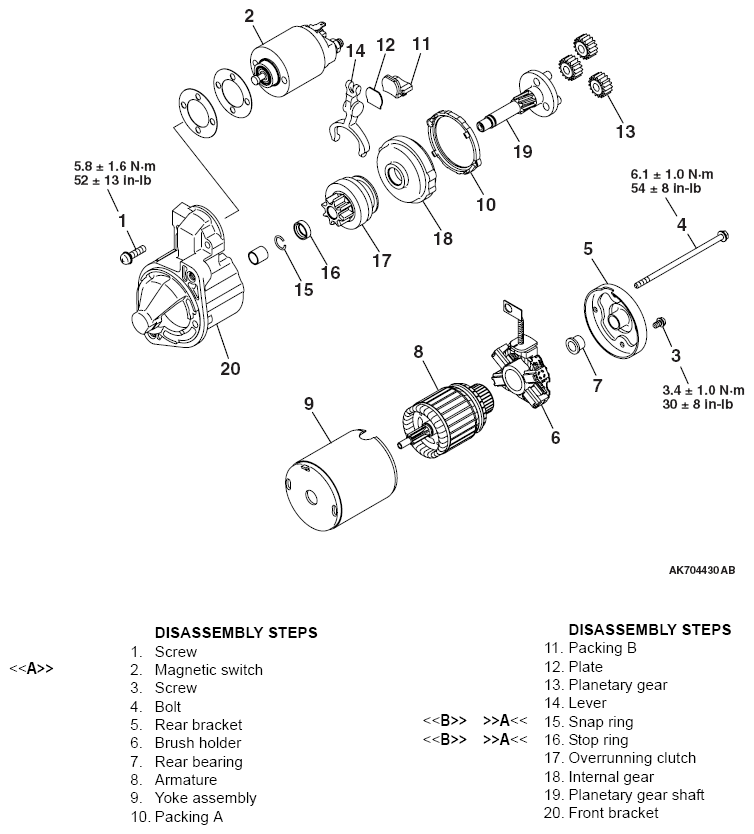

Fig 1: Exploded View Of Starter With Torque Specifications
G09641020Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
