Removal And Installation: Notes

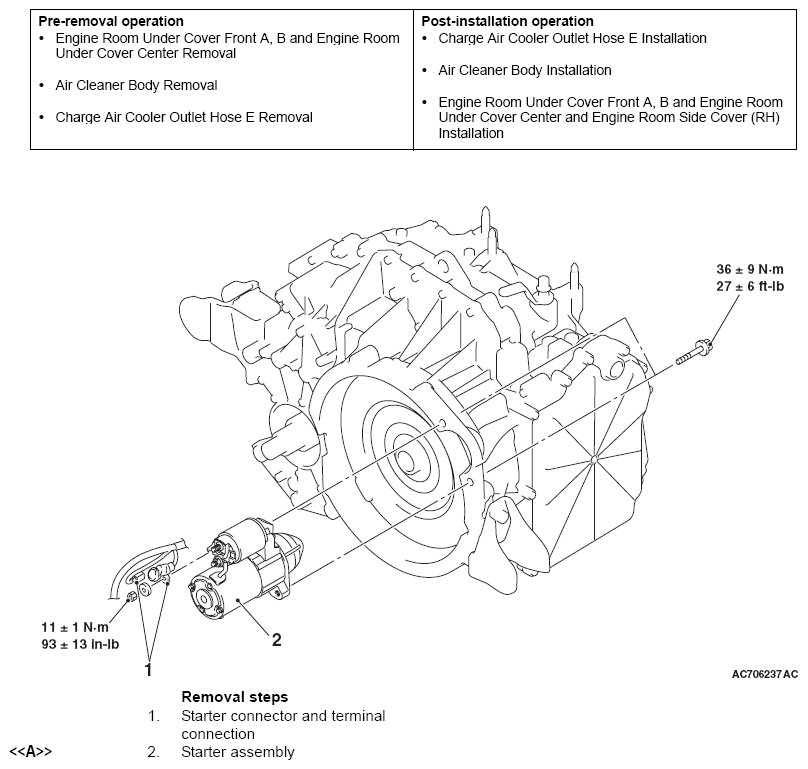

Fig 1: Removing/Installing Starter Motor Assembly With Torque Specifications
G09641012Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
