Fuel Pump Module

NOTE: For installation and removal, refer to Fuel Pump Module Replacement in On-vehicle Service (refer to FUEL PUMP MODULE REPLACEMENT  ).

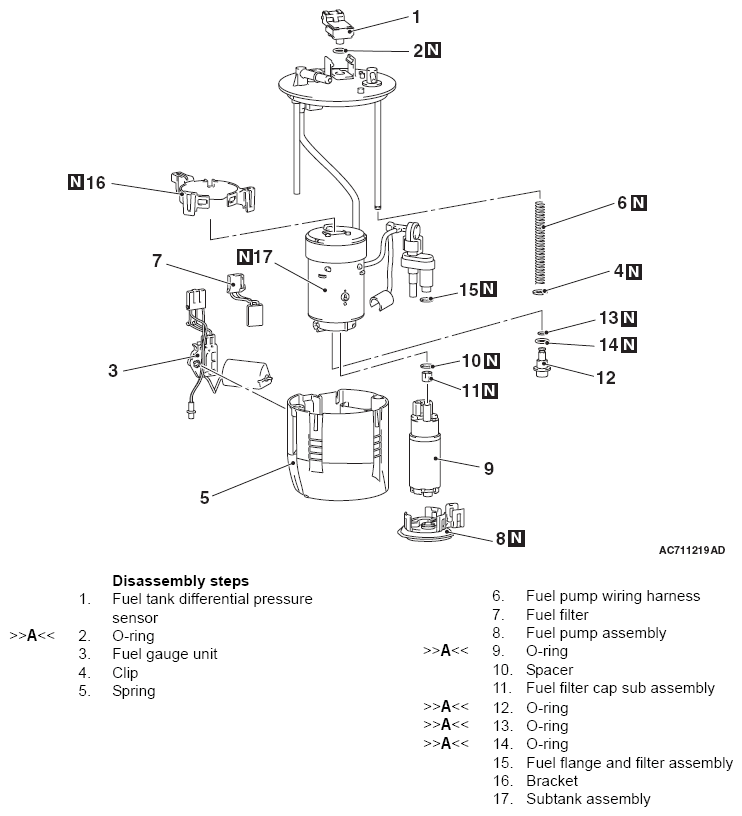

Fig 1: Disassembling/Assembling Of Fuel Pump Module
G09640880Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
