>> A << Knock Sensor Installation

Set the connector of the knock sensor to the position shown in the figure, and tighten it to the specified torque.

Tightening torque: 20 ± 2 N.m (15 ± 1 ft-lb)

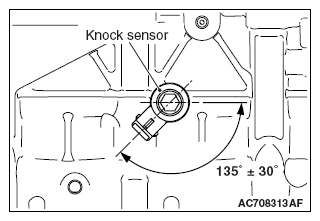

Fig 1: Identifying Knock Sensor Installation Angle

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
