Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

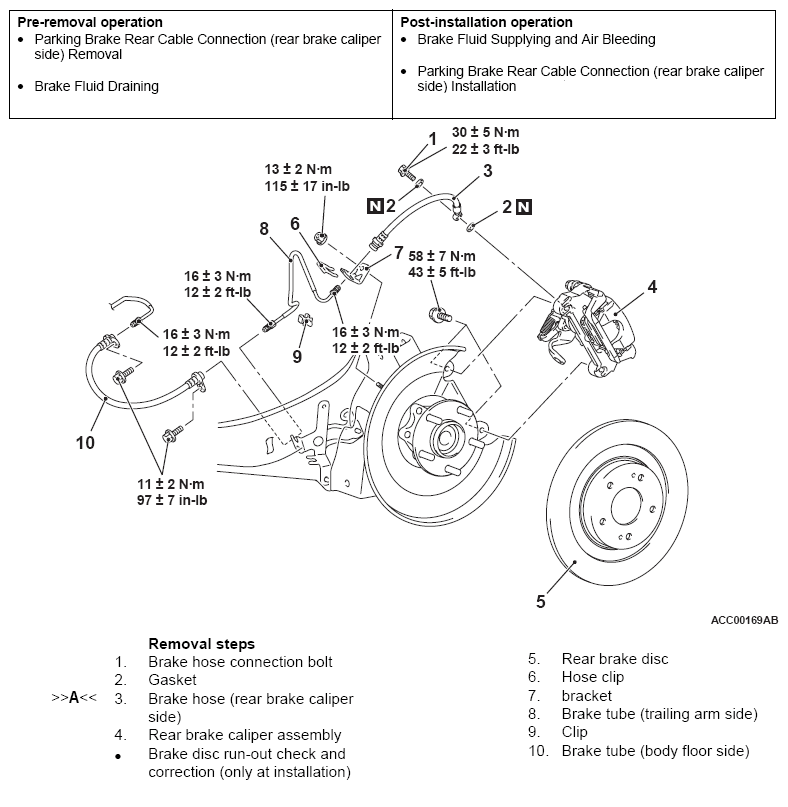

Fig 1: Removing/Installing Rear Disc Brake Assembly With Torque Specification
G09667583Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
