<< A >> Front Bracket Assembly Removal
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not insert the screwdriver tool deep as the stator core could be damaged.

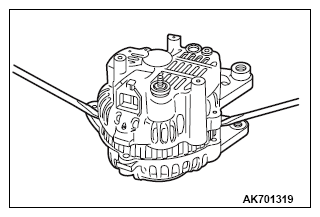

- With a screwdriver blade inserted between the front bracket and stator core, pry to separate the stator from the front bracket.
- If they are hard to separate, lightly strike the bracket with a plastic hammer while prying with the screwdriver.
