<< C >> Stator/Regulator Assembly Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove 6 installation screws of the stator lead wire, and then remove the stator.
  2. Remove 4 installation screws of the regulator to remove the regulator assembly.

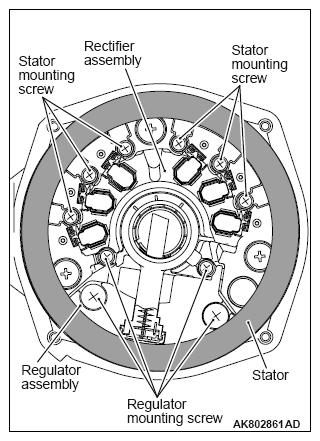

    Fig 1: Identifying Stator/Regulator Assembly Mounting Screw
    G09664718Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
