REMOVAL AND INSTALLATION - 3.0L Engine: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

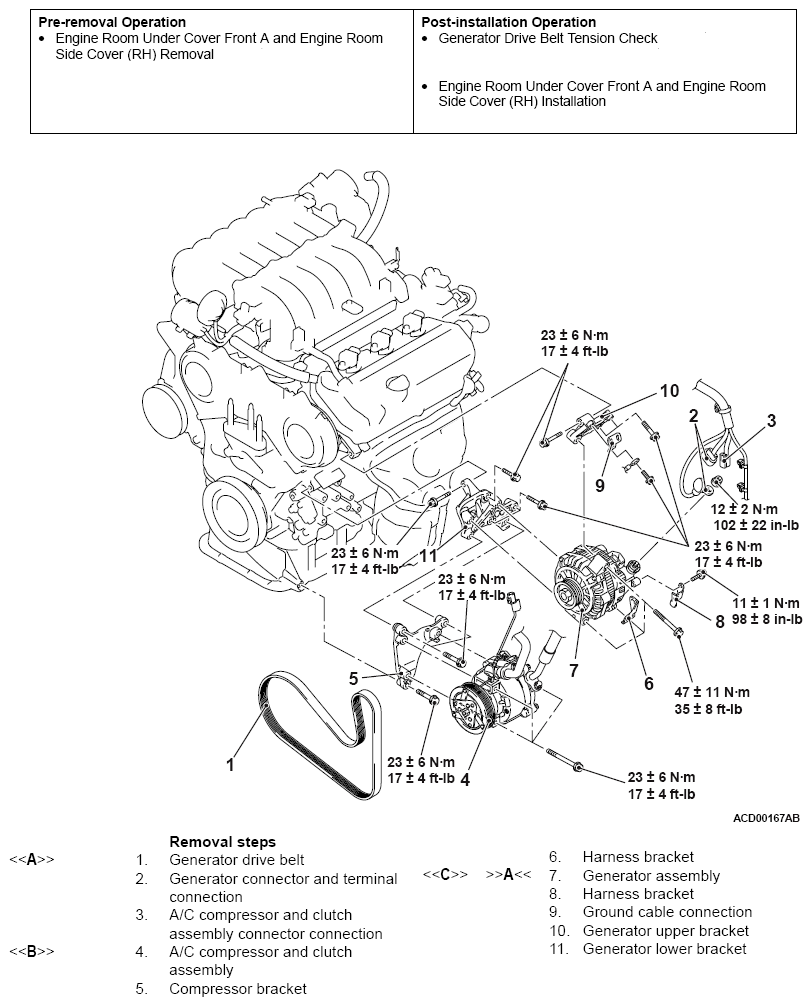

Fig 1: Removing/Installing Charging System With Torque Specification - 3.0L Engine
G09664712Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
