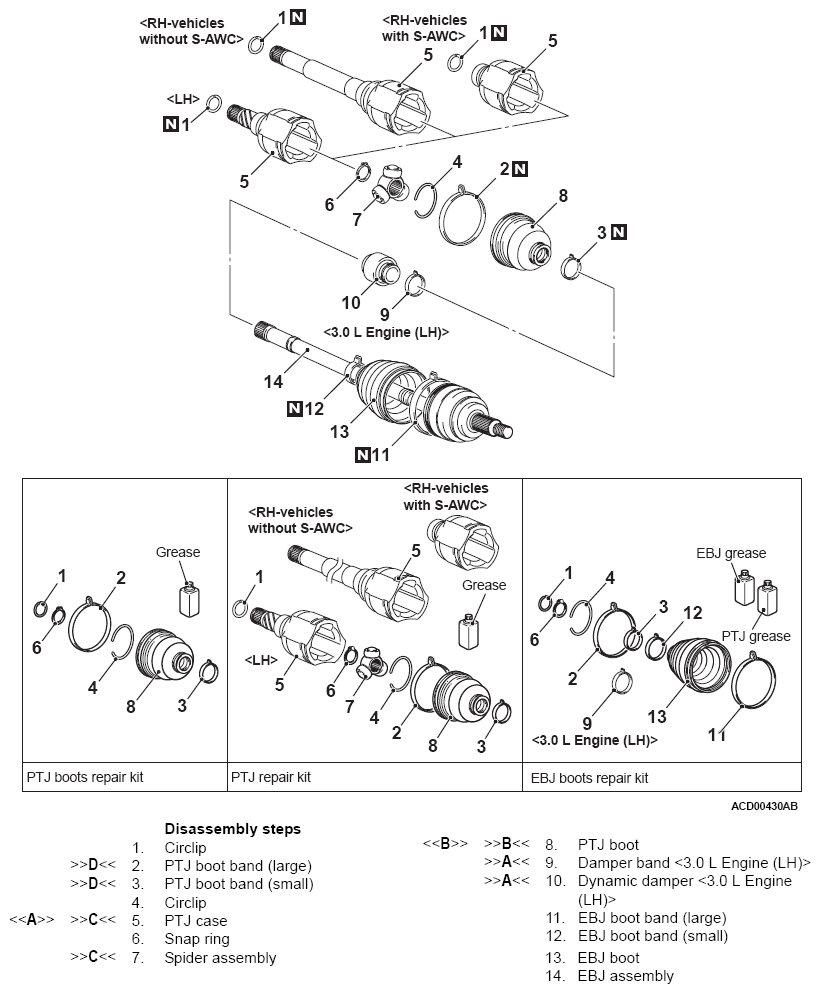

Disassembly And Reassembly < AWD >: Notes
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
As for the EBJ assembly, only the EBJ boot can be replaceable, and other parts cannot be disassembled.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
- PTJ: Pillow Tripod Joint
- EBJ: High Efficiency Compact Birfield Joint
