>> B << PTJ Boot Band (Small)/PTJ Boot Band (Large) Installation
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

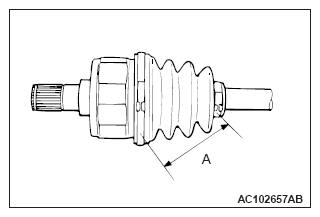

Adjust the distance (A shown in the illustration) between the boot bands to the standard value to adjust the air volume inside the PTJ boot to the specified value, then be sure to tighten the PTJ boot band (large) and PTJ boot band (small).
Standard value < LH >:
90 ± 3 mm (3.54 ± 0.12 in)
Standard value < RH >:
85 ± 3 mm (3.35 ± 0.12 in)
