<< A >> Hub Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: In the hub removal operation, make sure to replace the wheel bearing with new one.

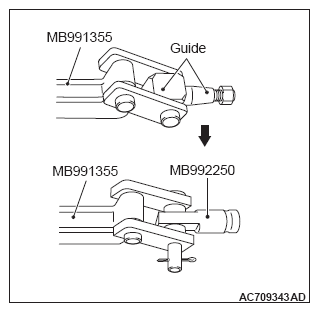

Replace special tool MB992250 with a guide of special MB991355 as shown in the figure.

Fig 1: Replacing Special Tool MB992250 Using Guide Of Special MB991355
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Insert special tool MB992250 in the knuckle and tighten it with a bolt and nut.

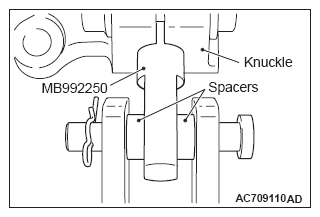

NOTE: Set the spacers of special tool MB992250 as shown in the figure.

Fig 2: Setting Spacers Of Special Tool MB992250
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

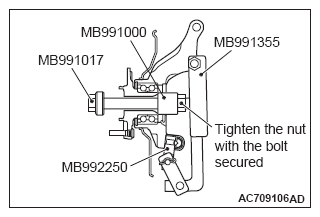

Use special tools MB991000, MB991017, MB991355 and MB992250 to remove the hub.

Fig 3: Removing Hub
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
