>> A << Stabilizer Link Connection

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Use a hexagon wrench to install the stabilizer link and strut connection nut as shown in the figure.

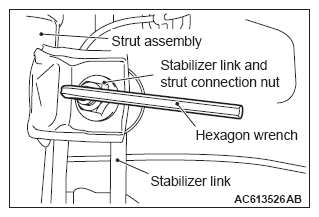

Fig 1: Removing Stabilizer Link And Strut Connection Nut
G09665641Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
