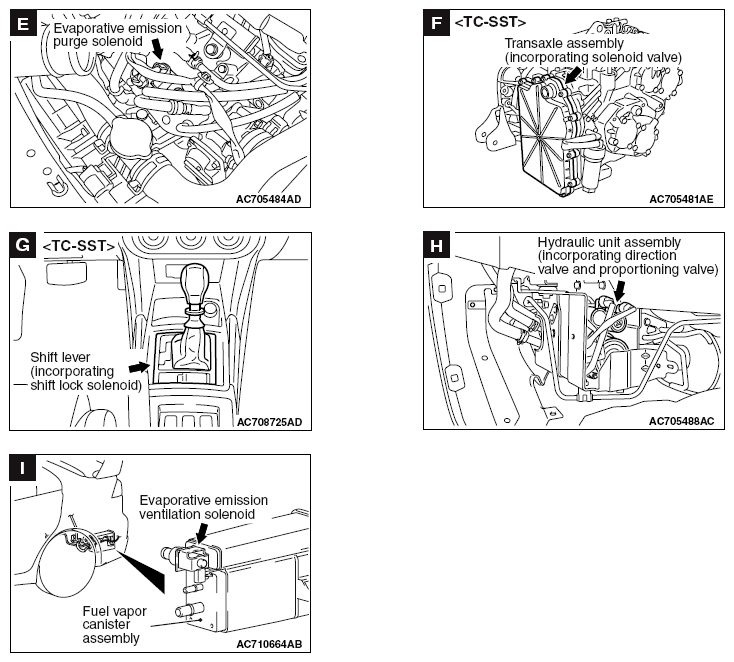

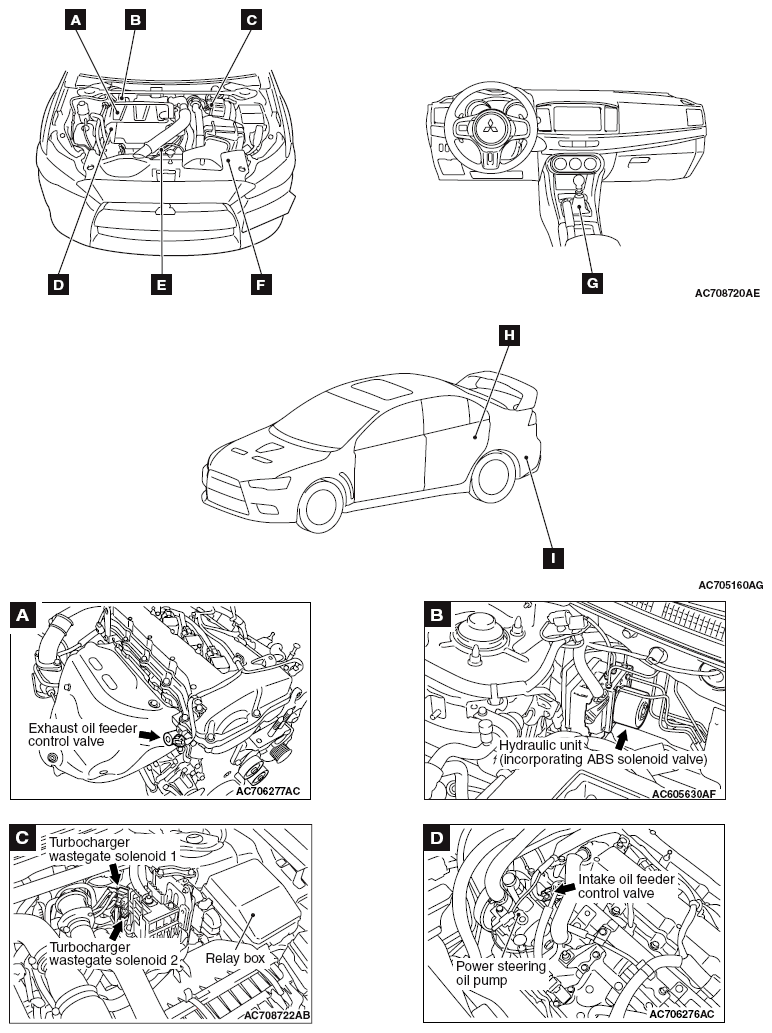

Solenoid And Solenoid Valve
| Name | Symbol |
|---|---|
| Evaporative emission purge solenoid | E |
| Evaporative emission ventilation solenoid | I |
| Exhaust oil feeder control valve | A |
| Hydraulic unit (incorporating ABS solenoid valve) | B |
| Hydraulic unit assembly (incorporating direction valve and proportioning valve) | H |
| Intake oil feeder control valve | D |
| Shift lever (incorporating shift lock solenoid valve) < TC-SST > | G |
| Transaxle assembly (incorporating solenoid valve) < TC-SST > | F |
| Turbocharger wastegate solenoid 1 | C |
| Turbocharger wastegate solenoid 2 | C |
