Steering Wheel Sensor Connector End View (C-209)

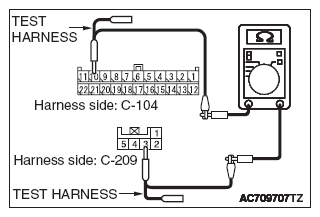

Fig 1: Steering Wheel Sensor Connector End View (C-209)
G09653305Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
