Disassembly And Assembly: Notes

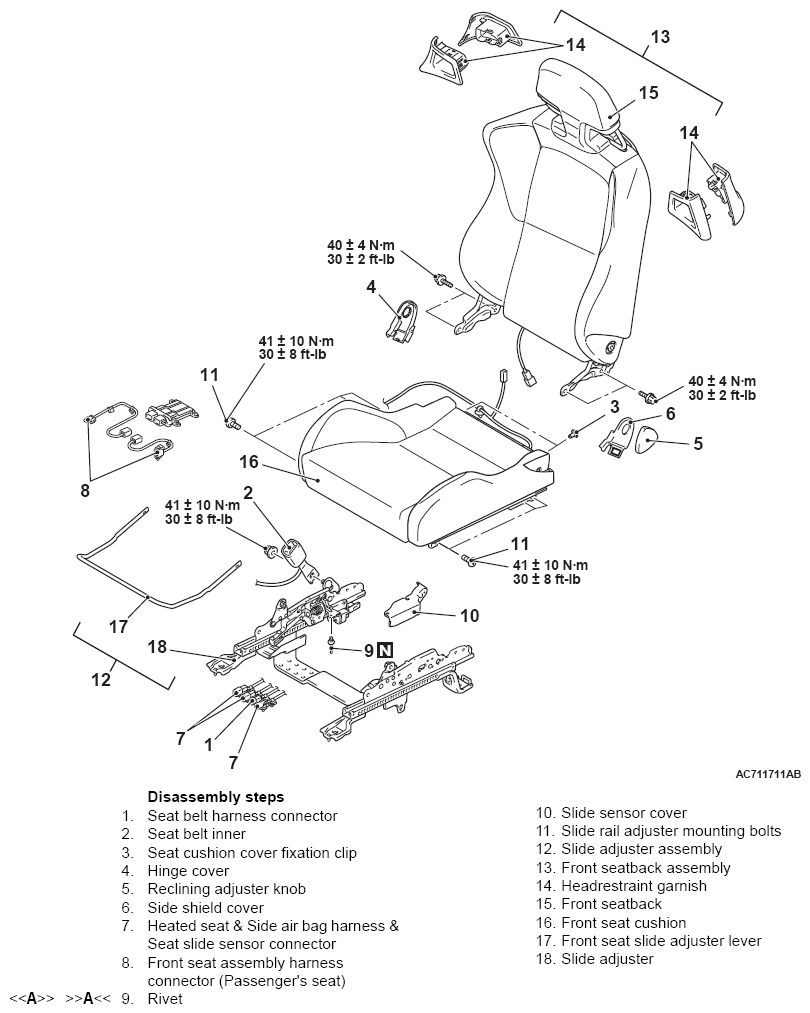

Fig 1: Disassembling/Assembling Seat Assembly With Torque Specifications
G09651730Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
