Fluid Replacement
- Raise and support the front wheels.

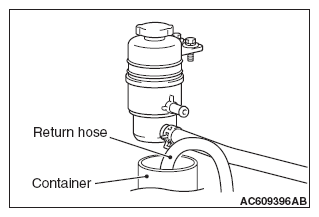

- Disconnect the return hose connection, and then connect a vinyl hose to the return hose, and drain the fluid into a container.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

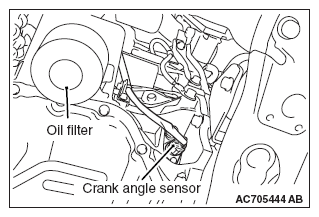

- Disconnect the crank angle sensor connector.
- While operating the starter motor intermittently, turn the steering wheel all the way to the left and right several times to drain all of the fluid.
- Connect the return hose securely, and then secure with the clip.
- Fill the oil reservoir with Mitsubishi Motors Genuine POWER STEERING FLUID to the lower position of the filler, and then bleed the air (Refer to FLUID LEVEL CHECK
).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
