Steering Angle Check

CAUTION: After adjusting the steering angle, perform calibration to make the ASC-ECU learn the neutral position of the steering wheel sensor. (Refer to STEERING WHEEL SENSOR CALIBRATION .)

Check that the wheel alignment is normal. (Refer to WHEEL ALIGNMENT CHECK AND ADJUSTMENT (Refer to ON-VEHICLE SERVICE .)

Place the front wheel onto the turning radius gauge, and measure the steering angle.

STANDARD VALUE SPECIFICATION

Inner wheel	33°10' ± 1°30' (Left/right deviation within 2°00')
Outer wheel (reference value)	28°10'

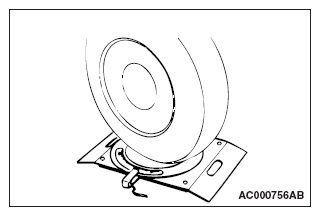

Fig 1: Identifying Wheel On Turning Radius Gauge

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If the measured value is not within the standard value, adjust the tie-rod ends (right and left), and repeat Steps 1 and 2.
If the measured value is not within the standard value after performing Step 3, replace the steering gear and linkage assembly. (Refer to POWER STEERING GEAR BOX AND LINKAGE .)

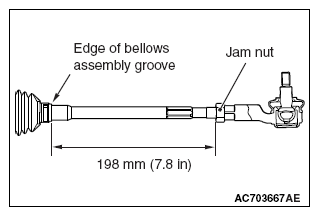

Fig 2: Identifying Distance Between Edge Of Bellows Assembly Groove And Jam Nut
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
