Removal And Installation: Notes

CAUTION:

Before removing the steering wheel assembly and driver's air bag module, always refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING .
After removing the steering wheel, always perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION .)

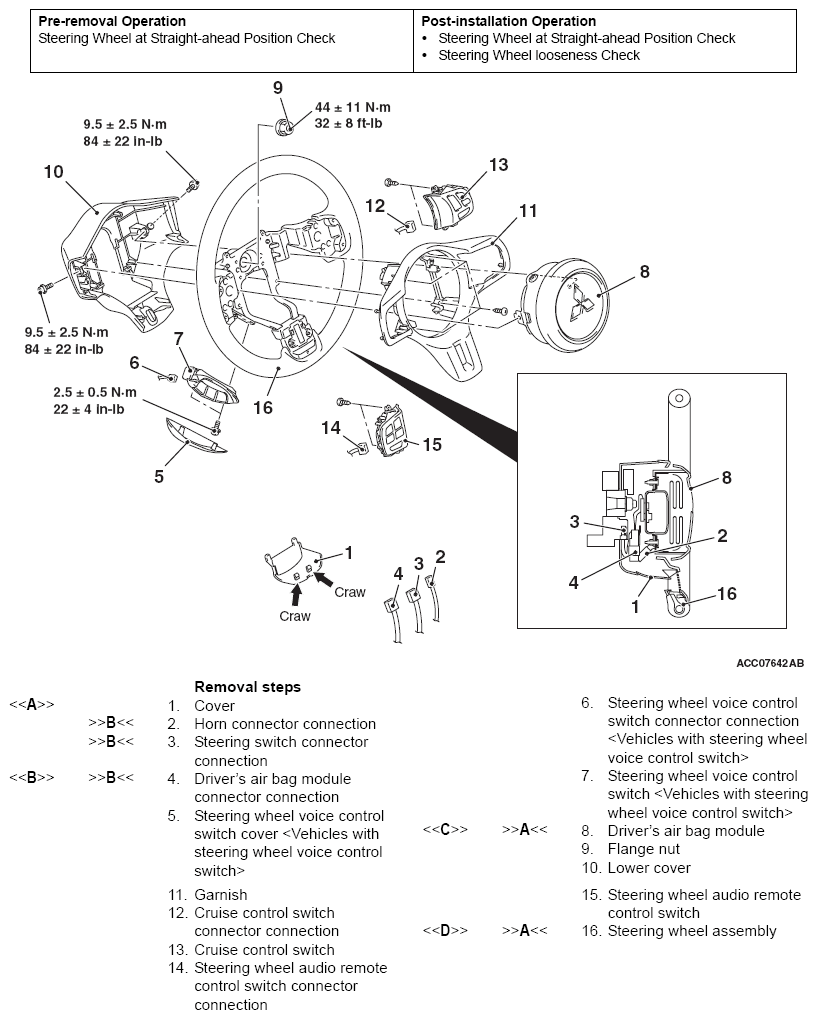

Fig 1: Remove/Install Steering Wheel With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
