>> A << Battery Installation

CAUTION: Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.

Install a new battery to the transmitter assembly with its (+) side facing towards the master key side.

Battery required for replacement: Coin type battery CR1620

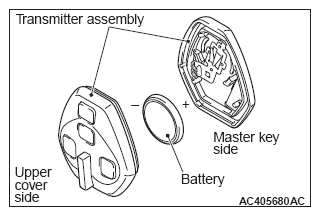

Fig 1: Identifying Transmitter Assembly
G09666239Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
